Schema diff tutorial
Step-by-step guide showing you how to compare two development branches using Schema Diff
In this guide we will create an initial schema on a new database called people
on our main
branch. We'll then create a development branch called dev/jordan
, following our recommended convention for naming development branches. After making schema changes on dev/jordan
, we'll use the Schema Diff tool on the Branches page to get a side-by-side, Github-style visual comparison between the dev/jordan
development branch and main
.
Before you start
To complete this tutorial, you'll need:
-
A Neon account. Sign up here.
-
To interact with your Neon database from the command line:
Step 1: Create the Initial Schema
First, create a new database called people
on the main
branch and add some sample data to it.
Step 2: Create a development branch
Create a new development branch off of main
. This branch will be an exact, isolated copy of main
.
For the purposes of this tutorial, name the branch dev/jordan
, following our recommended convention of creating a long-lived development branch for each member of your team.
-
Create the development branch
On the Branches page, click Create Branch, making sure of the following:
- Select
main
as the primary branch. - Name the branch
dev/jordan
.
- Select
-

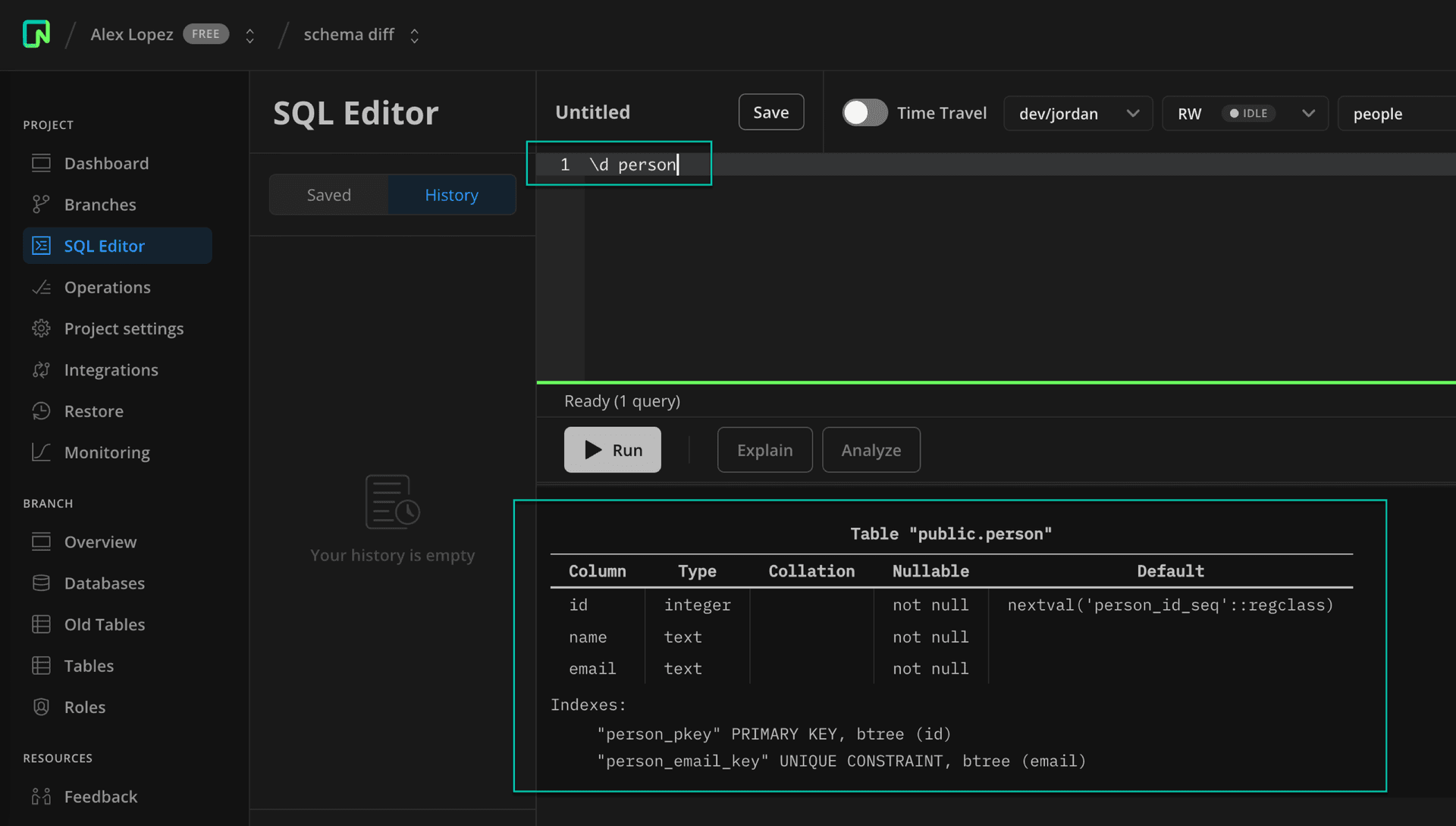

Verify the schema on your new branch
From the SQL Editor, use the meta-command
\d person
to inspect the schema of theperson
table. Make sure that thepeople
database on the branchdev/jordan
is selected.
Step 3: Update schema on a dev branch
Let's introduce some differences between the two branches. Add a new table to store addresses on the dev/jordan
branch.
In the SQL Editor, make sure you select dev/jordan
as the branch and people
as the database.
Enter this SQL statemenet to create a new address
table.
CREATE TABLE address (
id SERIAL PRIMARY KEY,
person_id INTEGER NOT NULL,
street TEXT NOT NULL,
city TEXT NOT NULL,
state TEXT NOT NULL,
zip_code TEXT NOT NULL,
FOREIGN KEY (person_id) REFERENCES person(id)
);
Step 4: View the schema differences
Now that you have some differences between your branches, you can view the schema differences.
-

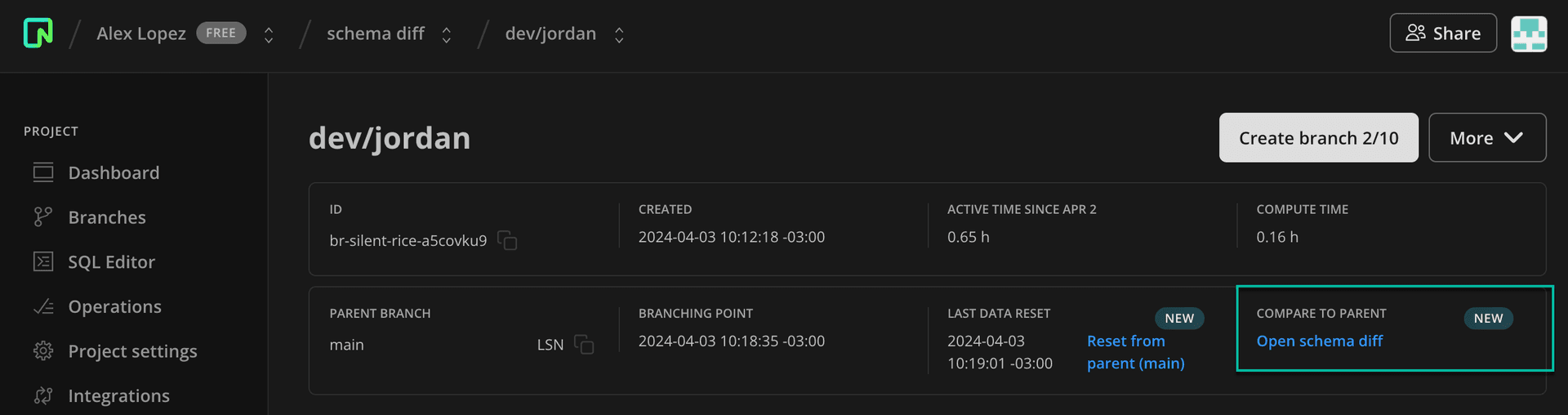

Click on
dev/jordan
to open the detailed view, then under Compare to Parent click Open schema diff. -
Make sure you select
people
as the database and then click Compare.
You will see the schema differences between dev/jordan
and its parent main
, including the new address table that we added to the dev/jordan
branch.
You can also launch Schema Diff from the Restore page, usually as part of verifying schemas before you restore a branch to its own or another branch's history. See Branch restore for more info.
